Servo-hydraulic, energy & cost saving
Haitian Mars Series
The MA5 Series is the new intelligent standard in economically energy-saving injection molding. Optimized for excellence, it sets benchmarks in performance, efficiency, and smart technology.
Clamping Unit
600 – 33,000 kN
Injection Volume
49 – 45,616 cm3
Mold Platen Size
470×470 – 3100×3020 mm
Tiebar Distance
310×310 – 2160×1900 mm
Controller
KEBA
Screw Diameter
24 – 220 mm
The new generation 5
20-40% energy saving with electrical charging.
Improved plasticizing speed and durability.
Advanced in-house developed smart features as standard.
High-response servo drive with fast, dynamic custom power system.
New UI large-screen panel and powerful control.
Highlights
Electrical Charging

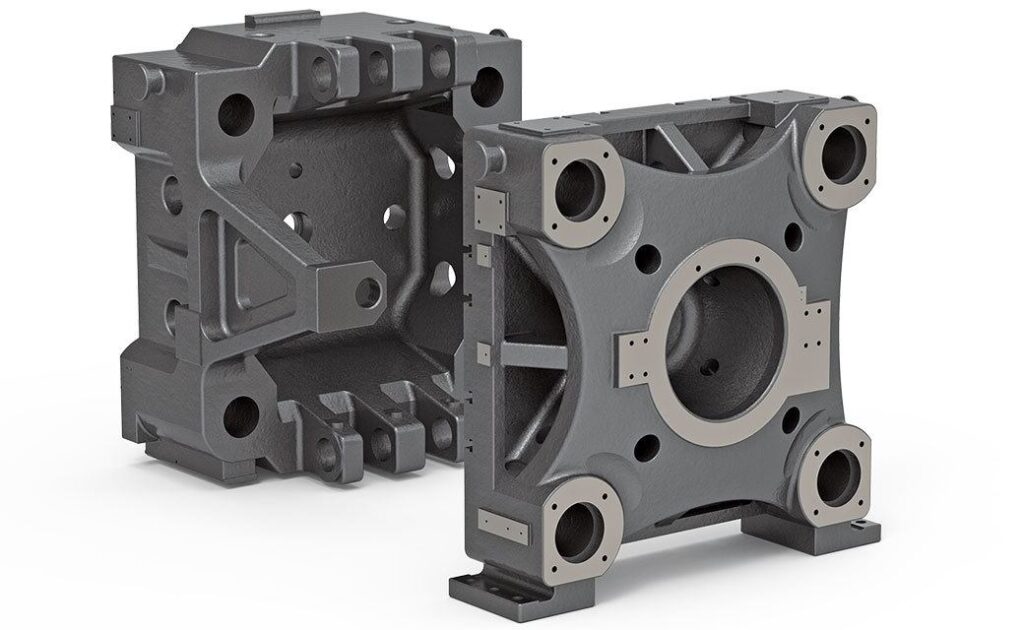

High-rigid Platen Structure

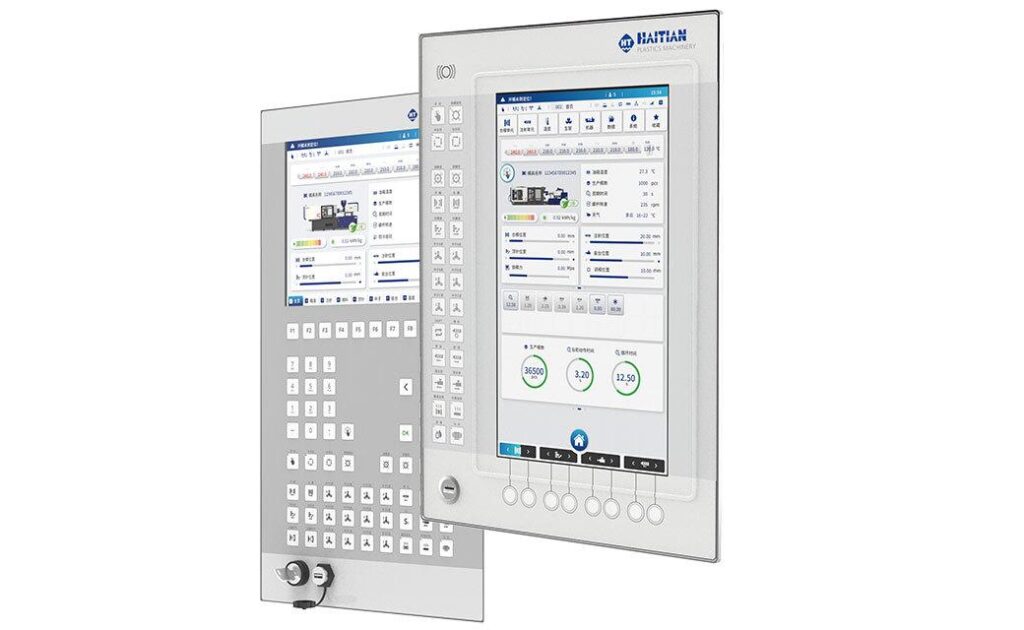

Latest Control Technology

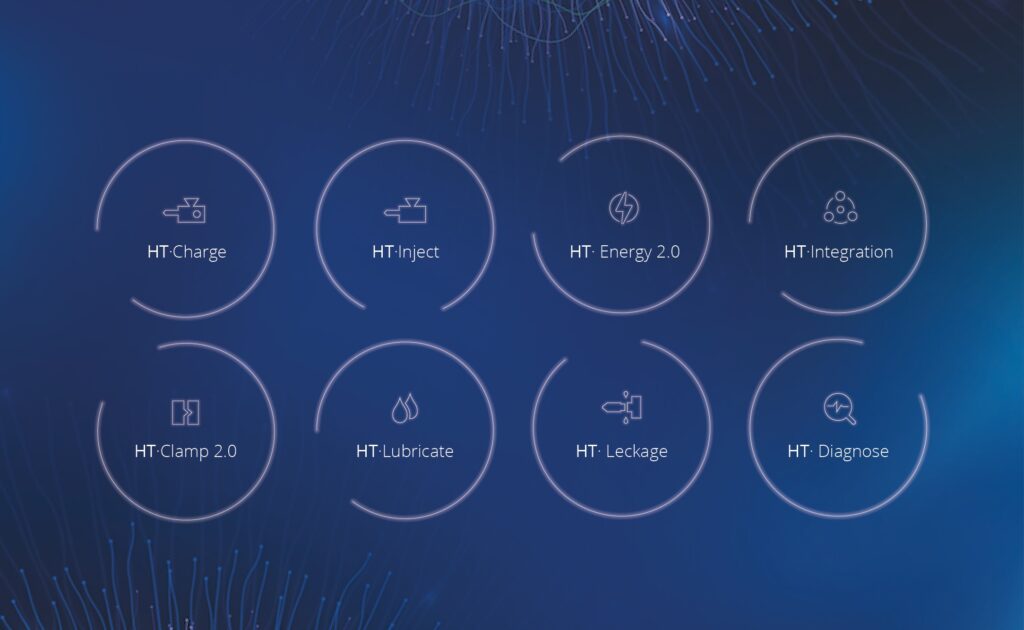

Smart Features as Standard
Haitian Mars Series 5th Generation – Technical Specifications
| Machine Model (kN) | Screw Dia (B) | Shot Weight (PS) | Tie Bar Space (mm) | Max Mold Height |
|---|---|---|---|---|
| Small to Medium Range | ||||
| MA 600 V / 130 | 28 mm | 61 g | 310 x 310 | 330 mm |
| MA 900 V / 280 | 36 mm | 138 g | 360 x 360 | 390 mm |
| MA 1200 V / 400 | 40 mm | 194 g | 410 x 410 | 450 mm |
| MA 1600 V / 570 | 45 mm | 290 g | 470 x 470 | 520 mm |
| MA 2500 V / 1000 | 55 mm | 546 g | 580 x 580 | 580 mm |
| Large Industrial Range | ||||
| MA 3800 V / 2250 | 70 mm | 1127 g | 730 x 730 | 730 mm |
| MA 4700 V / 3200 | 80 mm | 1692 g | 820 x 800 | 780 mm |
| MA 6000 V / 4500 | 85 mm | 2272 g | 880 x 880 | 880 mm |
| MA 8000 V / 6800 | 100 mm | 3359 g | 1000 x 1000 | 1000 mm |
| MA 10000 V / 8400 | 110 mm | 4410 g | 1160 x 1160 | 1160 mm |
| MA 12000 V / 8400 | 110 mm | 4410 g | 1250 x 1250 | 1250 mm |

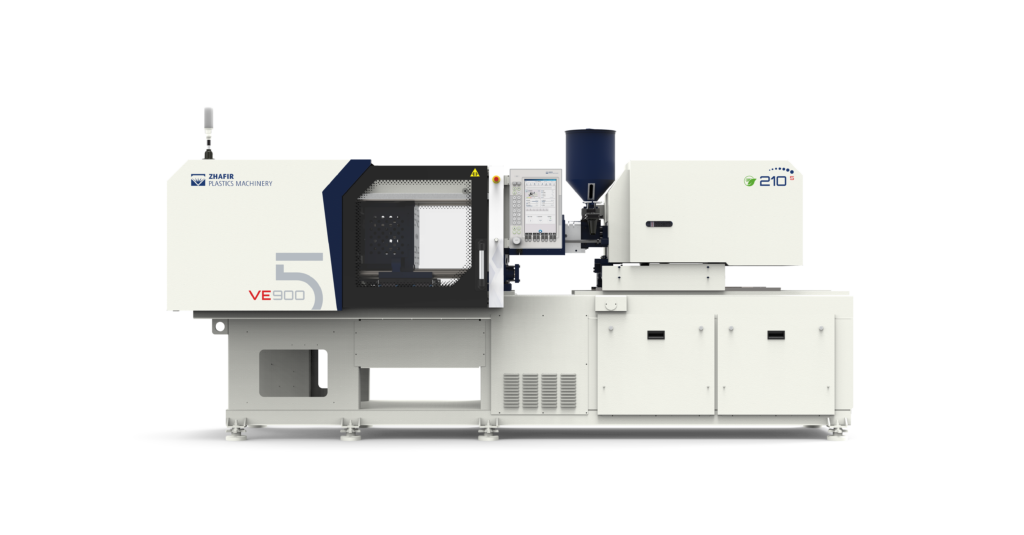

Zhafir Venus Series
600 – 33,000 kN
Fully electric, precise & clean
Haitian Mars Series Gen 5 Official Technical Data (600-12,000 kN)
⚙️Precision Components
MA 600 V / 130
Clamping Force: 600 kN
Shot Weight (PS): 61 g
Tie-Bar Space: 310x310 mm
Max Mold Height: 330 mm
BEST FOR: Small Clips, Gears & Precision Parts
🔌Electrical & PVC
MA 1200 V / 400
Clamping Force: 1200 kN
Shot Weight (PS): 194 g
Tie-Bar Space: 410x410 mm
Max Mold Height: 450 mm
BEST FOR: Switch Boxes & PVC Pipe Fittings
🧺Houseware Products
MA 2500 V / 1000
Clamping Force: 2500 kN
Shot Weight (PS): 546 g
Tie-Bar Space: 580x580 mm
Max Mold Height: 580 mm
BEST FOR: Baskets, Trays & Kitchenware
🪣Industrial Packaging
MA 3800 V / 2250
Clamping Force: 3800 kN
Shot Weight (PS): 1127 g
Tie-Bar Space: 730x730 mm
Max Mold Height: 730 mm
BEST FOR: Paint Buckets & Battery Cases
🪑Large Furniture
MA 5300 V / 4500
Clamping Force: 5300 kN
Shot Weight (PS): 2272 g
Tie-Bar Space: 830x830 mm
Max Mold Height: 820 mm
BEST FOR: Plastic Stools & Large Crates
📦Automotive & Logistics
MA 8000 V / 6800
Clamping Force: 8000 kN
Shot Weight (PS): 2720 g
Tie-Bar Space: 1030x1030 mm
Max Mold Height: 1050 mm
BEST FOR: Pallets & Car Bumpers
🗑️Heavy Duty Industrial
MA 10000 V / 8400
Clamping Force: 10000 kN
Shot Weight (PS): 3645 g
Tie-Bar Space: 1160x1160 mm
Max Mold Height: 1160 mm
BEST FOR: Waste Bins & Outdoor Tables
🚜Ultra Large Production
MA 12000 V / 8400
Clamping Force: 12000 kN
Shot Weight (PS): 4410 g
Tie-Bar Space: 1250x1250 mm
Max Mold Height: 1250 mm
BEST FOR: Large Pallets & Agricultural Parts
