INTRODUCTION

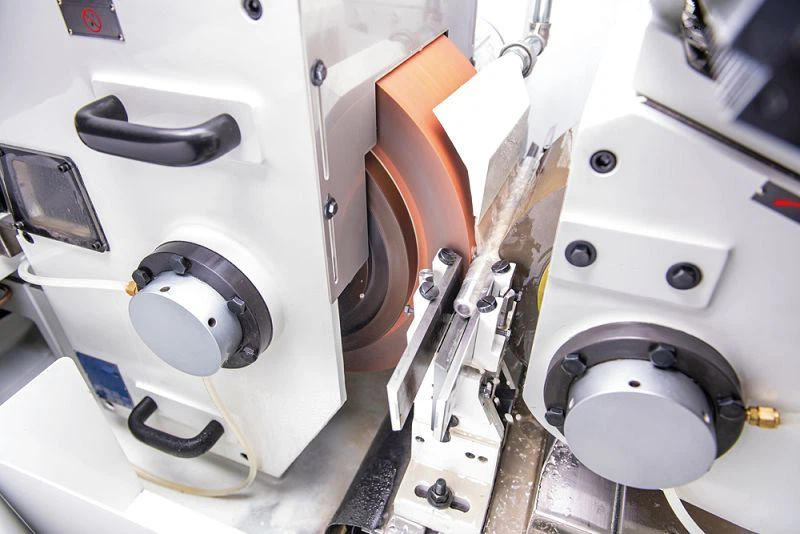

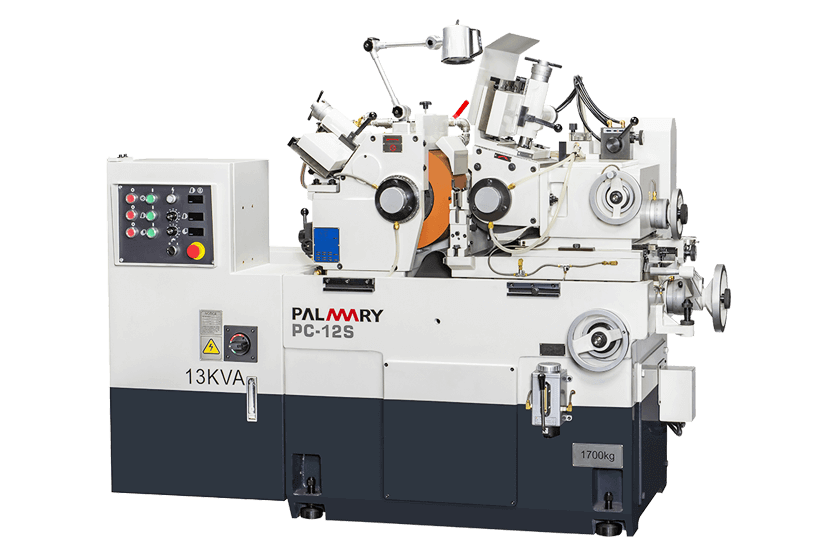

Centerless Grinders Economic Servo Type PC-12S Series is a high-quality grinder manufactured by Palmary. Different from traditional standard models, this series of grinders adopt servo motor to drive the regulating wheel speed. This improves the operation of the regulating wheel more precise and easier to operate.
As a grinding machines manufacturer, Palmary have always been committed to providing high-quality grinding machines and professional technical support. The operation of a Centerless Grinder is a complex process requiring technical knowledge and experience. However, Palmary provide users with a user-friendly operation interface and comprehensive technical guidance, enabling the operator to give full play to the capabilities of the grinding machine and achieve high-efficiency and high-accuracy grinding.
Precision Spindles

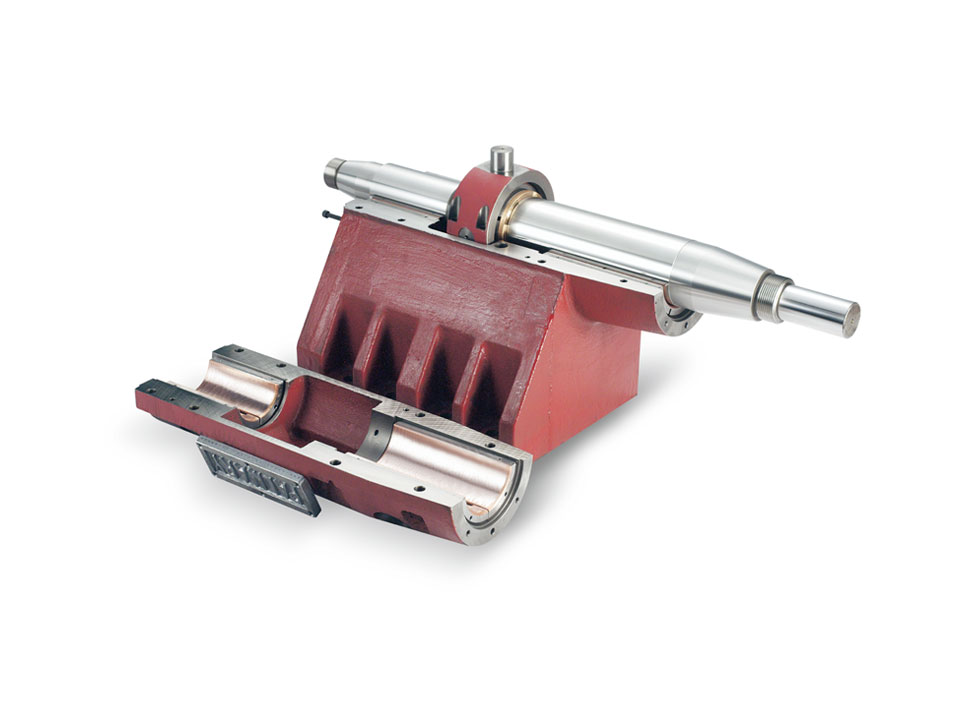

The GW spindle and the RW spindle are precision machined and made from alley steel, processed with normalization, aging, and heat treatment, then proceed to sub-zero treatment, finally finished after precision machining and grinding.
Feed Screw

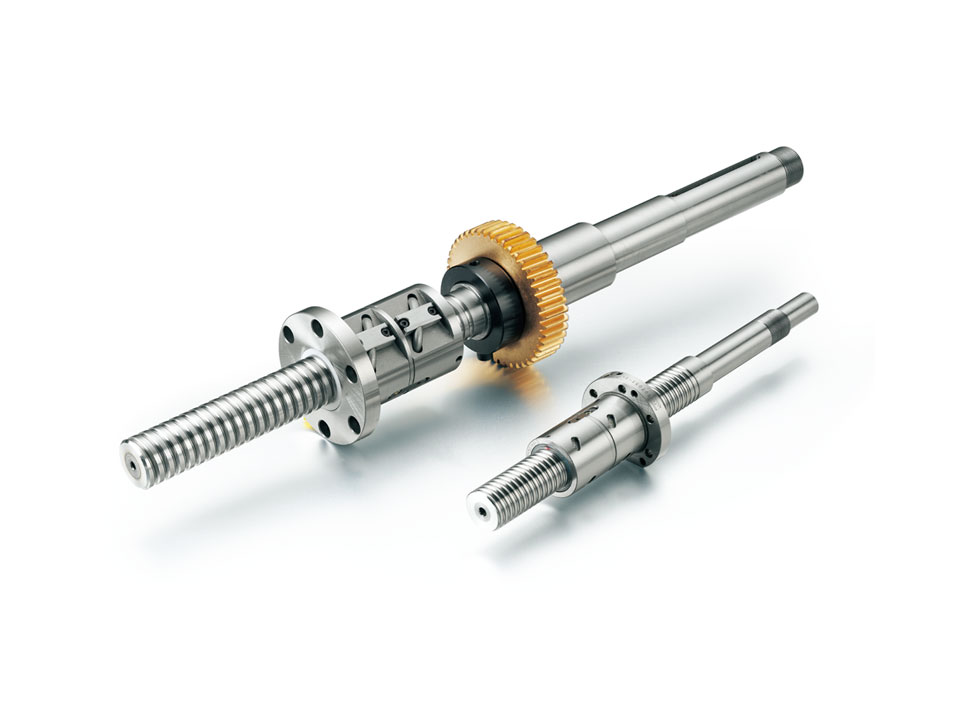

The feed screw is manufactured from alloy steel. It’s also normailzed, high frequency harden and precision ground in order to have high feeding accuracy and excellent wear resistance.
Pressure Switch

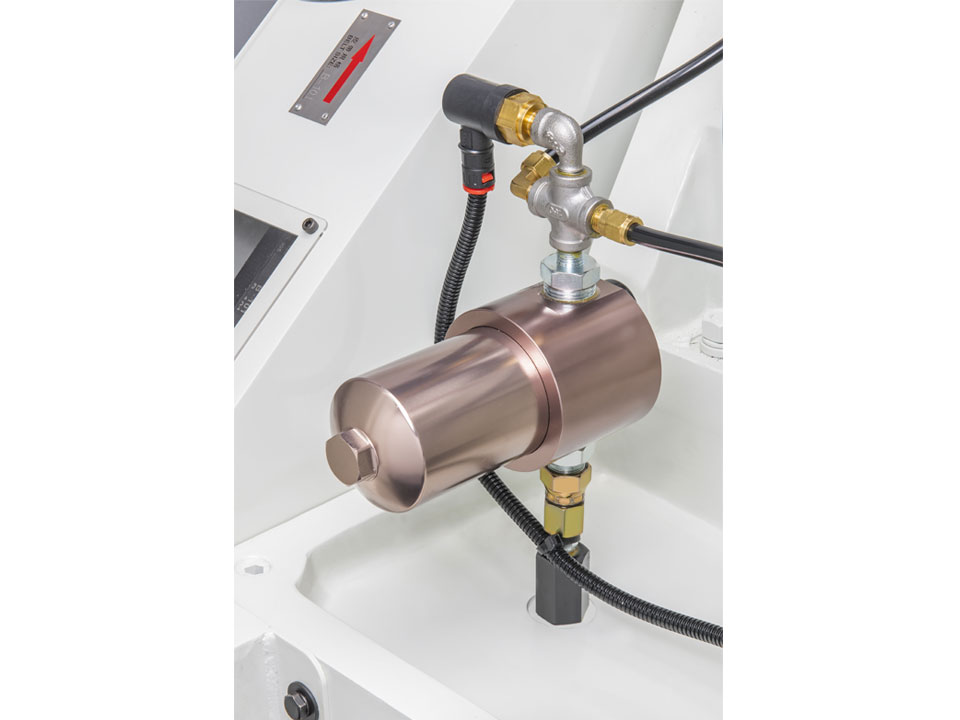

When starting the GW and RW spindle, this pressure switch allows starting only when oil enters into bearings thereby providing safety protection for the spindle bearings.
Lubrication System

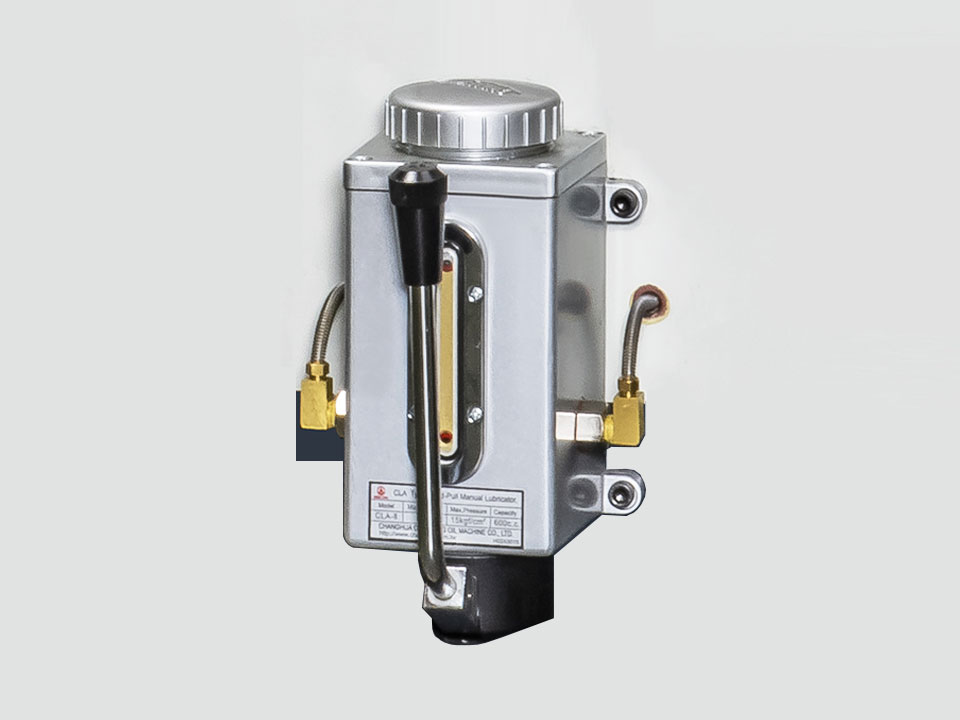

The automatic lubricator provides lubrication to the GW spindle. Also all slideways are lubricated by a centerlized lubrication system, ensuring proper lubrication and feeding accuracy.
| Technical Specifications - Model PC-12S | |
|---|---|
| Grinding Wheel | |
| Standard Grinding Range (Dia.) | Ø1 ~ Ø40 mm |
| Capacity with Special Arrangement | Ø30 ~ Ø60 mm |
| Grinding Wheel Size (O.D. x Width x I.D.) | Ø305 x 150 x Ø120 mm |
| Linear Velocity | 33 M/s |
| Grinding Wheel Motor | 7.5 HP x 4P (5 kW) |
| Regulating Wheel | |
| Regulating Wheel Size (O.D. x Width x I.D.) | Ø205 x 150 x Ø90 mm |
| Regulating Wheel Speed | 10 ~ 300 r.p.m. (Variable Speed) |
| Regulating Wheel Motor | 1.5 kW Servo Motor |
| Regulating Wheel Tilt Angle | ±5° |
| Regulating Wheel Swivel Angle | ±5° |
| Handwheel Graduation | |
| Upper Slide Feed Graduation | 4 mm/rev / 0.025 mm/graduation |
| Upper Slide Micro-feed Graduation | 0.1 mm/rev / 0.001 mm/graduation |
| Lower Slide Feed Graduation | 7 mm/rev / 0.05 mm/graduation |
| Lower Slide Micro-feed Graduation | 0.2 mm/rev / 0.001 mm/graduation |
| Trimming Device Graduation | 1.25 mm/rev / 0.01 mm/graduation |
| System & Weight | |
| Hydraulic Pump Motor | 1 HP x 4P |
| Coolant Motor | 1/8 HP x 2P |
| Coolant / Hydraulic Tank Capacity | 100 L / 53 L |
| Net Weight | 1700 kgs |
* The mentioned specifications & dimensions are subject to change without notice.
