Safe・Reliable・Simple
Safe Production
With the protective enclosure, the C Series delivers you peace of mind, ensuring maximum safety of operators.
Reliable Quality
The 3rd-generation mortise-and-tenon bed frame and mineral cast anti-burn plate extend the machine’s life greatly.
Simple Operation
With smart cutting parameter auto-match and remnants layout, the C Series simplifies the operation.
Efficiency Improved Time-Valued
It adopts high-performance bus servo motors to achieve the absolute leading dynamic performance (compared with similar products in the market).
Significantly improving processing efficiency to ensure that every second you invest is creating value.
1.5G
Maximum acceleration up to
30%
Overall Performance
Note: The “Overall Performance Improved by 30%” mentioned above is relative to Bodor’s previous-generation product.

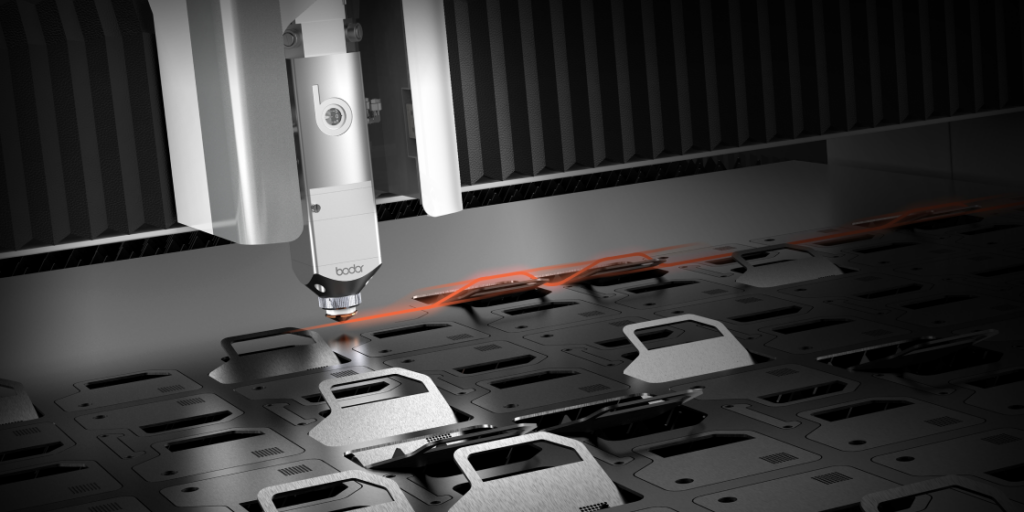

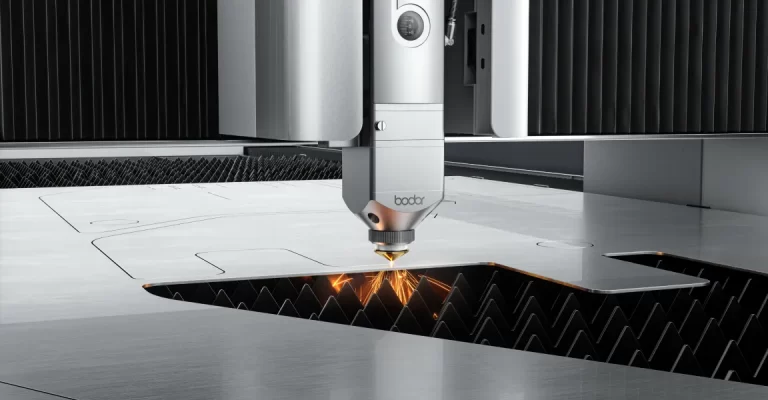

Laser Head Intelligent Collision Avoidance
Self-developed servo-following sensors and path avoidance algorithms reduce the risk of laser head collision significantly.
Multiple format sizes are available.
Find the perfect product for you!
Technical Specifications
| Model | Working Area | Max. Linkage Speed | Max. Acceleration | Z-axis Travel | Positioning Accuracy | Repositioning Accuracy | Table Load Bearing |
|---|---|---|---|---|---|---|---|
| C3 | 3048×1524mm | 120m/min | 1.5G | 320mm | ±0.05mm/m | ±0.03mm | 1-6kW: 911kg 12kW: 1095kg 22-30kW: 1460kg |
| C4 | 4000×2000mm | 110m/min | 1.5G | 370mm | ±0.05mm/m | ±0.03mm | 1-6kW: 1570kg 12kW: 1886kg 22-30kW: 2515kg |
| C6 | 6100×2500mm | 110m/min | 1.5G | 370mm | ±0.05mm/m | ±0.03mm | 1-6kW: 2995kg 12kW: 3595kg 22-30kW: 4794kg |
| C12 | 12200×2500mm | 110m/min | 1.5G | 370mm | ±0.05mm/m | ±0.03mm | 12kW: 7368kg 22-60kW: 9825kg |
